Quick Assembly Video

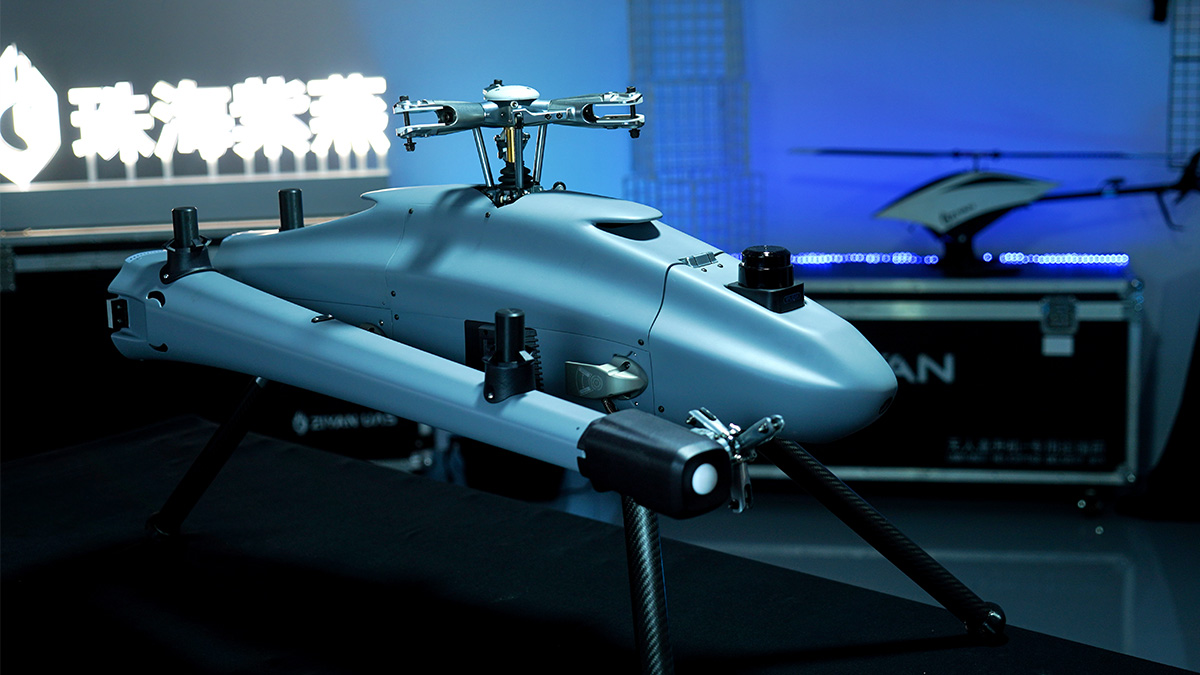

Design of collapsible fuselage
Meeting the needs of various tasks

● Portable Assembly
Designed of collapsible,portable,suitable for single operator
● More suitable for complex environments
High mobility, higher environmental adaptability than multi-rotor and fixed-wing, making flying easier
*130 km per hour maximum level flight speed, maximum level 7 wind resistance. The actual use time may vary depending on the environment, flight mode and the use of accessories
Far More than Distance
Much more flexible and efficient for teamwork coodination

The command center can quickly deploy emergency work according to the real-time image transmission information. The field operators can control the aircraft and load with one click, and share the real-time information to each other synchronously, which makes the team cooperation more flexible and efficient.

  • suitable for joint prevention and control of emergency

  • one UAV multi station monitoring

  • A-B point remote handover control

Data Link
Brand-New Data Link
seeing far is really far

15 kmReal-Time HD Image Transmission
  • Graphical data transmission integrated design,independent frequency, can independently set the frequency

  • ● Automatic frequency hopping,strong anti-jamming ability

  • AES-256 encryption technology is adopted to ensure the security of data transmission

Moving Base | Dynamic Takeoff and Landing
A New Mode of Three Dimensional Cooperative Operation Between Sea, Land, and Air

The following speed of ZIYAN’s moving base is more than 60 km /h
* ZIYAN’s moving base takeoff and landing following module is optional module
Multi-Playload Platform
Different Playload,Intelligent follow of a moving Platform

  • Two cameras can be assembled. One is used to control the aircraft, and the other is used to perform tasks, using two screens to operate separately. Make the operation more accurate

  • ● Different two screens can be used for image display, which is conducive to making the rescue, law enforcement, and inspection operations more accurate

  • ● Diversified mission loads : pod, life-saving ring, tilt camera, searchlight

Note : Double screens are additional materials. If necessary, please contact online customer service consultation.
Designed of collapsible
Volume by 80 % after folding

  • Small
    Original folding structure design, compact and lightweight fuselage
  • Fast
    Integrated design,5 minutes quick assembly
  • Portable
    Reduce volume by 80 % after folding,Transport facilitation
Gimbal Camera
Three Axis Gimbal + Unique Damping Device
Tridimensional Flexible Anti vibration mechanism

  • Without unique damping device
  • equipped with unique damping device

It can be used in power grid fault inspection, transmission line inspection, tower and line fault location,to avoid circuit blind spot
The anti-vibration and damping device effectively improves the speed and efficiency of power maintenance and repair, which is 40 times higher than the efficiency of manual inspection.

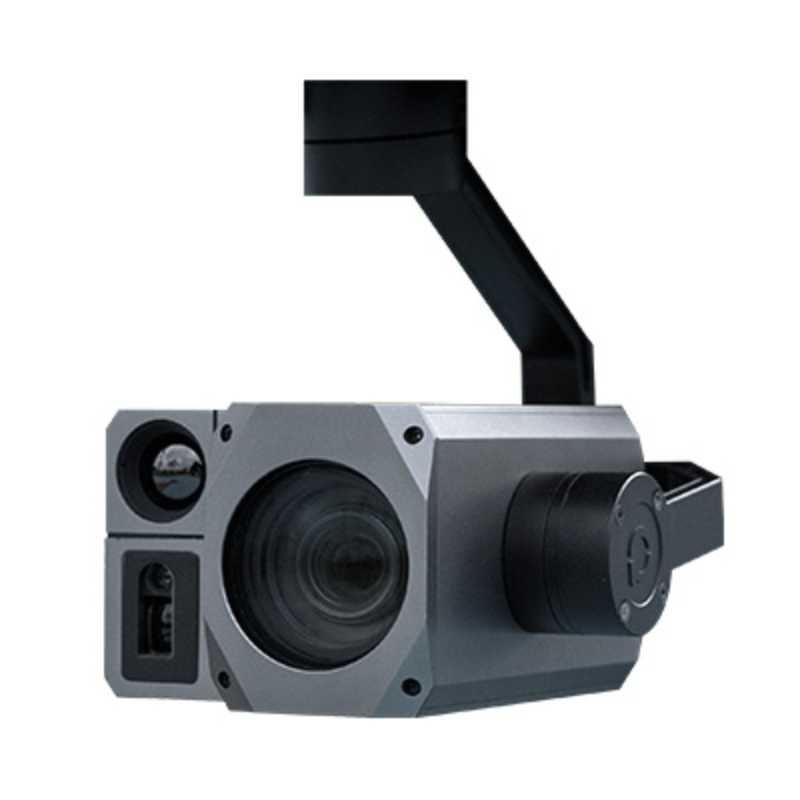

30X EO Camera with Laser Range Finder

  • 30X HD conversion
  • target recognition and tracking
  • one key positioning

30X laser ranging pod + loudspeaker
30X laser ranging pod + searchlight
tilt camera
multi-spectral camera
*loudspeaker, searchlight, tilt camera are optional loads, which need to be purchased separately

  • 30X laser ranging pod

    • 30X HD zoom• target recognition and tracking• One click positioning

  • Loudspeaker

    • volume over 130 db• broadcasting clearly at an altitude of 300m• the maximum sound distance is 1000m

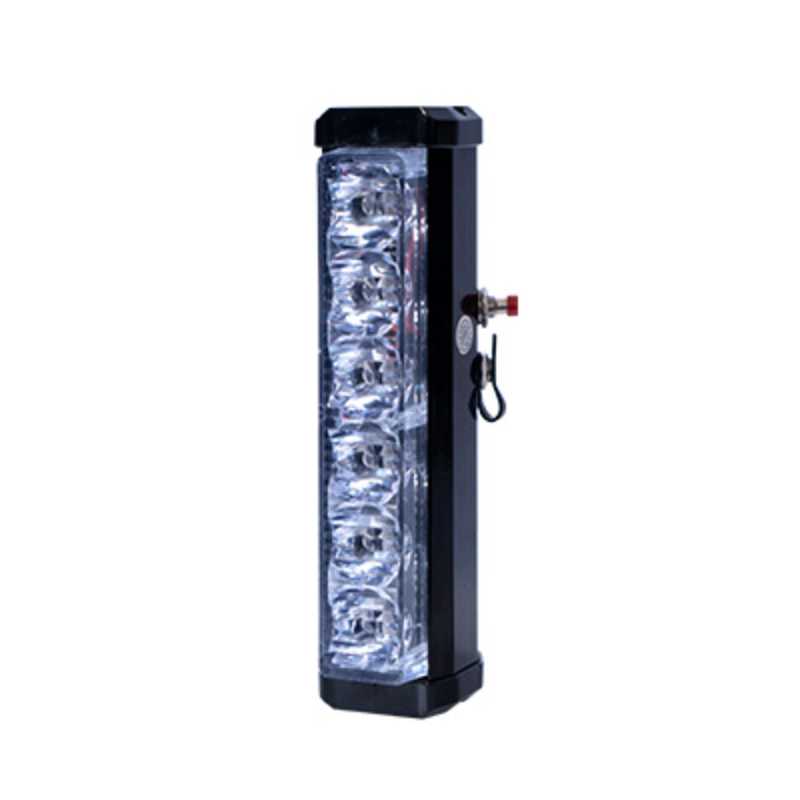

  • Searchlight

    • height :100m lighting range: 707m• Illumination brightness 8000 lumens (lumen)• control distance : 30km


  • Dimension
    Length :1655mm width:565mm height: 570mm
  • Dimension After Folding
    Length:865mm width:315mm height:360mm
  • Maximum Takeoff Weight
  • Maximum Payload
  • Wind Resistance Level
    Level 7
  • Working Temperature
    -20- 55°C ( Low temperature battery can be customized )
  • Maximum Operating ASL Altitude
    5100 m ( Should be under the legal flight altitude )
  • Economic
    60-90 km/h (Maximum horizontal speed 130km /h )
  • Maximum Endurance
    No load, with sufficient power : 50 mins
  • Empty Weight
    7.6kg(Battery weight not included)

  • • Falcon-10 complete platform 1Unit
  • • Handheld Ground Control Station 1set
    (Including ground station control software)
  • • Main Rotor Blade 1set
  • • Tail Rotor Blade 1set
  • • General tool box 1set
  • • Ground system integration box 1set
    (Including batteries)
  • • Tripod 1set
  • • Tripod cloud platform 1set
  • • Tripod extension rod 1pcs
  • • Power battery 1set
  • • Power battery charger 1set
  • • Power battery charging transfer line 1set
  • • Ground system integration box charger 1set
Six Security Guarantees Flying is more reassuring
  • Night Lights
  • Obstacle Avoidance Module
  • Redundant
  • Avionics
  • Automatic Cooling
  • Data Link Encryption
Four years to make products
More safe and reliable

  • 18000+hours Horizontal flight test
  • 5000+hours Plateau Flight test
  • 20000+hours Sea flight test
  • 2000+ Data link pull distance test for 30 kilometers
Get Started Like Playing a Game
Easier Operation brought by Intelligent Algorithm
and Interaction Technology

  • One Key Control Auto Takeoff / Hover / Return / landing
  • Planning Flight Route Double Click to Set Waypoint,
    Plan the Route Easily
  • Autonomous Flight Automatic Flight Along Preset Route
“Selecting ZIYAN UAV is a right choice” -- One of the Customer Comments

  • “The endurance is really long. I didn’t expect that the electric unmanned helicopter would be able to fly for such a long time without changing batteries.”
  • “I can see the ship number and waterline of the ship from 200 meters away. I’m very satisfied.”
  • “It’s been used for more than a month. The plane is really good. The operation and installation is very simple. It is quite convenient to go out for work.”
Make it your best work partner

  • Forest Defense Emergency
    Mountain Patrol Forest Protection Mountain Search Emergency Command Mine Monitoring
  • River Inspection
    Pollution law enforcement and supervision Fishing ban Flood control and frought relief Water search and rescue
  • Marine Inspection
    Cruise law enforcement emergency Response pollution control Pollution control Fishing ban
  • Oblique Photography
    Land ownership confirmation Emergency rescue Landing planning Digital city
